MediaTek Dimensity
    Flagship 5G Family

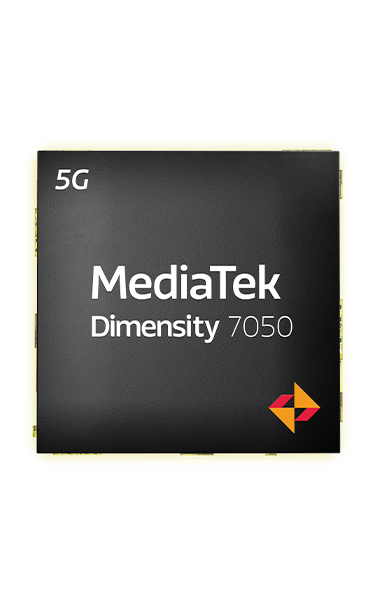

    MediaTek Dimensity 7050

    A power-efficient chipset with ultra-saving technology that provides incredible performance with advanced 5G integration. With greater CPU performance and lower power consumption, this chipset allows device makers to create light, slim, and attractive 5G smartphones.

    Fast Speeds, Smoother Games

    The octa-core CPU features two Arm Cortex-A78 processors clocked up to 2.6GHz for exceptional performance, rapid app response, and smoother FPS in games. The Arm Mali-G68 GPU is optimized to provide smooth everyday gaming experiences with exceptional power efficiency, extending battery life for longer gaming sessions.

    Additional Key Features

    Get bigger, brighter, sharper snaps with support for 200MP main cameras and a multitude of hardware-based camera engines and premium noise reduction techniques built into the chip. Using the dedicated 4K HDR video capture engine, record and stream video that’s bright and sharp in all lighting conditions.

    Using the high-performance MediaTek NPU 550, users can switch on AI-camera enhancements such as soft background (AI-bokeh) in video, and selective focus from a single camera, which is ideal for vlogs and streams.

    Employing Full HD+ displays up to 120Hz in their smartphone designs, brands can take advantage of MediaTek Intelligent Refresh Rate Display technology to provide all the user experience benefits of superfast refresh rate displays while also maximizing power efficiency.

    Benefit from whole smartphone enhancements that give gamers intelligent performance and power-efficiency boosts, making every moment matter.

    • MediaTek Wi-Fi Fast Path
    • Game on SIM 1, Call on SIM 2
    • 5G HSR mode for gaming
    • Super Hotspot Power Saving

    Wi-Fi 6 with 2x2 MIMO affords faster, more reliable internet connections. Integrated into the chip along with Bluetooth 5 and GNSS, the wireless connectivity is more power-efficient than other external chip solutions.

    Faster 5G Carrier Aggregation

    With 2CC-CA including mixed duplex FDD+TDD, smartphones can combine low and mid-band advantages for higher speeds and greater reach. 5G-CA enables higher average speeds and a seamless handover between two 5G connection areas across a coverage layer, where users receive over 30% greater throughput layer coverage than without CA.

    Dual 5G SIM

    Giving users more choice with dual 5G SIM (SA+SA), with support for premium VoNR voice and video call services from both connections.

    MediaTek 5G UltraSave

    The advanced 5G modem is fully integrated into this ultra-efficient, 6nm chip, and combined with MediaTek 5G UltraSave means the Dimensity 7050 is enhanced with even more 5G power-saving technologies.

    Using the advanced TSMC N6 (6nm-class) chip production process extends battery life, even for demanding users. Its highly power-efficient design enables device makers to create attractive, slim and light 5G smartphones with incredible performance that lasts longer than ever.

    Specifications

    Processor

    CPU

    • Arm Cortex-A78 @ 2.6GHz
    • Arm Cortex-A55 @ 2.0GHz

    Cores

    Octa (8)

    CPU Bit

    64-bit

    Heterogeneous Multi-Processing

    Yes

    Memory & Storage

    Memory Type

    • LPDDR5
    • LPDDR4x

    Storage Type

    • UFS 3.1
    • UFS 2.1

    Connectivity

    Cellular Technologies

    2G / 3G / 4G / 5G Multi-Mode, 4G Carrier Aggregation (CA), 5G Carrier Aggregation (CA), EDGE, 4G FDD / TDD, 5G FDD / TDD, GSM, TD-SCDMA, WDCDMA

    Specific Functions

    SA & NSA modes; SA Option2, NSA Option3 / 3a / 3x, NR TDD Band, NR FDD Band, DSS, NR DL 2CC, 120 MHz bandwidth, 256QAM NR UL 2CC, 256QAM VoNR / EPS fallback

    GNSS

    • GPS L1CA+L5
    • BeiDou B1I+ B2a
    • Glonass L1OF
    • Galileo E1 + E5a
    • QZSS L1CA+ L5
    • NavIC

    Wi-Fi Antenna

    2T2R

    Wi-Fi

    Wi-Fi 6E (a/b/g/n/ac/ax)

    Bluetooth

    5.2

    Display

    Max Display Resolution

    2520 x 1080

    Max Refresh Rate

    120Hz

    AI

    AI Accelerator

    MediaTek NPU 550

    Graphics

    GPU Type

    Arm Mali-G68 MC4

    Video

    Video Encoding

    • HEVC
    • H.264

    Video Encoding FPS

    4K @ 30FPS

    Video Playback

    • HEVC
    • H.264
    • MPEG-1/2/4
    • VP-9

    Video Playback FPS

    4K @ 30FPS

    Camera

    Max Camera ISP

    200MP

    Camera Features

    Hardware HDR video, 3X HDR-ISP, MFNR, 3DNR, AINR, Hardware Depth Engine, Warping Engine
