    MediaTek Dimensity
    Flagship 5G Family

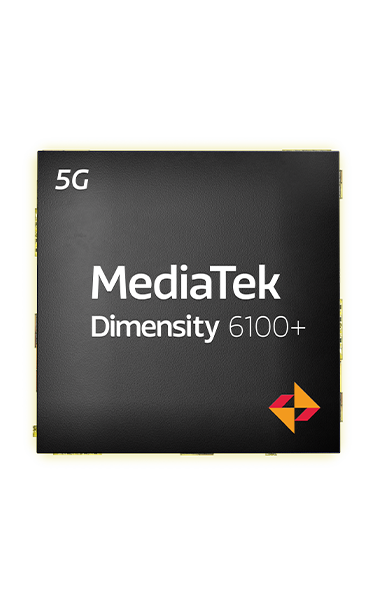

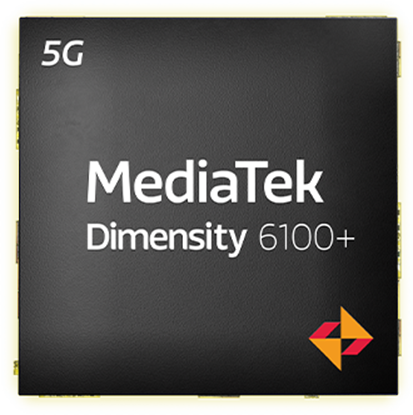

    MediaTek Dimensity 6100+

    A highly capable 5G SoC for mainstream and entry-5G smartphones offering advanced imaging, superfast connectivity with specialist enhancements, great gaming experiences, and exceptional power efficiency.

    Unleashing 5G's True Potential for Mainstream Smartphones

    3GPP R16 Standard Modem

    The Dimensity 6100+ features a 3GPP Release-16 standard 5G modem, including the latest connectivity enhancements now deployed by global cellular operators.

    MediaTek 5G UltraSave 3.0+

    MediaTek 5G UltraSave 3.0+ includes a complete suite of R16 power saving enhancements, plus MediaTek’s own optimizations that results in 13-30% greater power efficiency compared to competitor alternatives in common 5G sub-6GHz connectivity scenarios.

    Faster 5G that Reaches Further

    Addressing a maximum of 140MHz cellular spectrum enables up to 3.3Gb/s 5G downlink via 2CC carrier aggregation – up to 40% faster downlink speeds within urban environments, and up to 30% in suburbs, versus competitor alternatives. CA can apply mixed duplex FDD+TDD combining low and mid-band advantages, smartphones can access faster speeds and greater reach. Carrier aggregation also enables a seamless handover between two 5G connection areas across a coverage layer, where users receive over 30% greater throughput layer coverage than without CA.

    Situationally Intelligent Enhancements

    When travelling on high-speed rail, subway or travelling in vehicle underground, MediaTek’s 5G modem recognizes the connection environment and applies situationally intelligent enhancements designed to provide 20% more effective downlink speeds compared to competitor alternatives.

    LB+LB ENDC and 8-layer DL MIMO Support

    MediaTek Dimensity 6100+ supports dual, low-band ENDC and 8-layer DL MIMO, which are now required by many major global cellular operators for this class.

    Additional Key Features

    108MP with AI-Camera

    Support for 108MP camera sensors provides highly detailed photos, while advanced noise reduction technologies ensure selfies and low-light captures are always clear, sharp.

    • Hardware acceleration for dual cameras & depth perception
    • AI-camera enhancements such as AI-color + single camera bokeh

    Billion Color Display

    See contour-free true colors with billion color displays that can display real 10-bit images and videos, enhancing the user experience.

    Support for display speeds up to 120Hz helps reduce visual fatigue, and provides a supremely smooth user experience, such as page scrolling and animations in apps.

    MediaTek HyperEngine 3.0 Lite Gaming Technologies

    Smartphone gaming enhancements that provide longer gameplay, a faster network response and more reliable connectivity to ensure gamers always stay connected.

    • 3rd generation 5G Call/Data Concurrency – no missed calls during gaming
    • Smooth performance in game engines, demanding scenes, and intense gameplay
    • 5G/Wi-Fi concurrency with intelligent connection prediction

    Exceptionally Power-efficient & Compact Platform

    TSMC N6 (6nm-class) chip production process ensures its light on power, extending battery life even for demanding smartphone users. MediaTek’s engineering innovations have also created a more compact platform that gives device designs more freedom in their product creations.

    Specifications

    Processor

    CPU Type(s)

    • 2X Arm Cortex-A76 up to 2.2GHz
    • 6X Arm Cortex-A55 up to 2.0GHz

    Cores

    Octa (8)

    CPU Bit

    64-bit

    Heterogeneous Multi-Processing

    Yes

    Memory & Storage

    Memory Type

    LPDDR4x

    Max Memory Frequency

    2133MHz

    Storage Type

    UFS 2.2

    Graphics

    GPU Type

    Arm Mali-G57 MC2

    Camera

    Max Camera ISP

    • Up to 108MP
    • 16MP + 16MP

    Display

    Max Display Resolution

    2520 x 1080

    Max Refresh Rate

    Up to 120Hz

    Connectivity

    Cellular Technologies

    2G / 3G / 4G / 5G Multi-Mode, 4G Carrier Aggregation (CA), 5G Carrier Aggregation (CA), EDGE, 4G FDD / TDD, 5G FDD / TDD, GSM, TD-SCDMA, WDCDMA

    Specific Functions

    SA & NSA modes; SA Option2, NSA Option3 / 3a / 3x, NR TDD Band, NR FDD Band, DSS, NR DL 2CC, 140 MHz bandwidth, 256QAM NR UL 2CC, 256QAM VoNR, Dual VoNR, Dual 5G SIM, EPS fallback

    Peak Download Speed

    3.3Gbps

    GNSS

    • GPS L1CA+L5
    • BeiDou B1I+ B2a
    • Glonass L1OF
    • Galileo E1 + E5a
    • QZSS L1CA+ L5
    • NavIC

    Wi-Fi Antenna

    1T1R

    Wi-Fi

    Wi-Fi 5 (a/b/g/n/ac)

    Bluetooth

    5.2
